Turner Sports Cars   Technical Information

Rear view of frame and rear suspension

Illustration and information courtesy of Keith Burnett and Russell Filby
and the Fairthorpe Sports Car Club and the Turner Registrar

Chassis with BMC 'A' series type front suspension/stering (most BMC A and Climax engined models).  Note: Upper link (A10) Standard model has a single link on the offside.  Models with high performance tuning and all Climax models have twin upper links, one on each side.

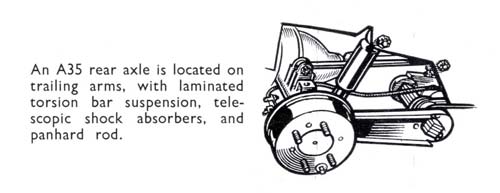

From an Ad for the 950S, courtesy of Paul Tilley
